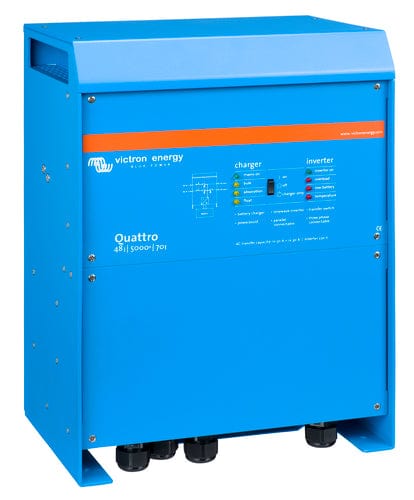

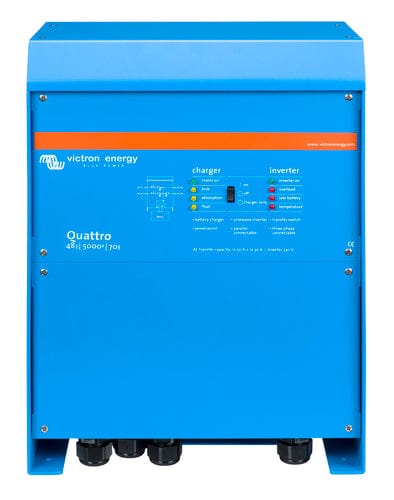

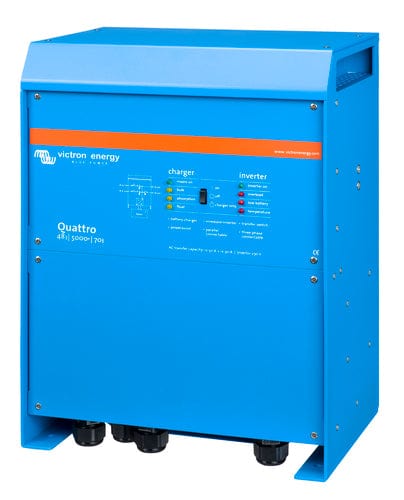

Victron Energy Quattro 48V/5000W/70-100/100 120V VE.Bus Inverter Charger

Victron Energy Quattro 48V/5000W/70-100/100 120V VE.Bus Inverter Charger

Victron Energy Logo
Top Authorized Dealer
Manufacturer Warranty Included
Customers rate us 4.8/5 based on 306 reviews.
SKU QUA485021100
Save 15% Save 15%
$2,102.00
$2,102.00 - $2,102.00
$2,102.00
$1,786.70
$1,786.70 - $1,786.70
$1,786.70
Availability:
Low stock

Get it between -

Profile Pic

Have a question? Talk to one of our trusted experts today!

Instant Live Chat: Chat IconChat Now

Call or Text us: Phone Icon 415-481-4075

Price Match Policy

Price Match

Here at OffGrid Living Solutions, we want to offer you the best prices online.

If you happen to find a lower price for the same product, we will guarantee to match their price or beat their price. Note, this does not apply to all products in the store. Please reach out to us via email or chat if you want a price match or price beat.

For the policy to apply, please send us a screenshot, link, or any other evidence of the product being priced lower than ours before making the purchase.

Refer to our Price Match Policy Rules.

Refunds & Returns Policy

At OffGrid Living Solutions, we are proud to have the best refund and return policies in the industry. If you’re not satisfied with your purchase for any reason, you may return it to us within 30 days for a refund.

If you have a problem with our order (there are missing components, damages, or the product is not functioning), please reach out to us as quickly as possible. Some of the problems can be resolved by going through the product manual or the product FAQs.

Refer to our Refunds & Return Policy for more details.

Shipping & Delivery

Order Processing

Once we receive your order, we will send you a confirmation email. Then we will process the order by confirming that the product is in stock and ready for shipment. If any of the items in your order are back-ordered, we will reach to you via email or phone and you may choose to either wait or receive a 100% refund.

Please allow 1-3 days for processing your order.

Shipping

We ship to the lower 48 continental United States only at this time.

Shipping times and shipping method will depend on the specific product and brand you purchase. If you have any shipping question, feel free to ask on the chat or email us at info@offgridlivingsolutions.com.

We will send tracking information by email the same day the shipping tracking number is created/available.

Before you sign the shipping bill, please THOROUGHLY INSPECT YOUR ITEM. Signing for the receipt of a damaged product removes the liability of the shipping company and OffGrid Living Solutions. Once you accept your shipment as non-damage, your item is your property.

Delivery time

Shipping Timeline listed above is an estimate. Please call or message the web chat for precise ETAs.

Victron Energy Quattro 48V/5000W/70-100/100 120V VE.Bus Inverter Charger

Similar to the MultiPlus, the Quattro is also a combined inverter and charger. Additionally it can accept two AC inputs and automatically connect to the active source. Its many features include a true sine wave inverter, adaptive charging, hybrid PowerAssist technology plus multiple system integration features such as three or split phase operation and parallel operation.

Models:
3000VA, 5000VA, 8000VA, 10000VA, 15000VA

Two AC Inputs & two AC Outputs

The Quattro can be connected to two independent AC sources, for example shore-side power and a generator, or two generators. The Quattro will automatically connect to the active source. The main output has no-break functionality. In the event of a grid failure, or shore or generator power being disconnected, the Quattro takes over the supply to the connected loads. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption. The second output is live only when AC is available on one of the inputs of the Quattro. Loads that should not discharge the battery, such as air-conditioning or a water heater can be connected to this output.

Unique PowerAssist feature

The Quattro will prevent overload of a limited AC source, such as a generator or shore power connection. First, battery charging will automatically be reduced when otherwise an overload would occur. The second level will boost the output of a generator or shore side supply with power taken from the battery.

Virtually unlimited power thanks to parallel operation

Up to 6 Quattros can operate in parallel to achieve higher power output. Three phase or split phase operation is also possible. Please check our datasheets to see which models have paralleling, three phase and split phase capabilities.

Remote Monitoring and Control

When coupled with a GX device (e.g. Cerbo GX) you can monitor and control your Quattro and system or systems' locally (LAN) or remotely via the internet from anywhere in the world, using the free VRM app and free VRM portal website. Access can be from a phone, tablet, laptop or PC for multiple operating systems. There is no end to the level of control, from adjusting your Quattro to auto starting a backupgenerator and more…

Product Specifications

Victron Energy Quattro 48V/5000W/70-100/100 120V VE.Bus Inverter Charger Product Specifications

Specifications:

  • Nominal Battery Voltage: 48/5000: 48V battery
  • PowerControl & Power Assist: Yes
  • Integrated Transfer switch: Yes
  • AC inputs (2x): Input voltage range: 187-250 VAC Input frequency: 50/60 Hz Cos Φ >0.8
  • Maximum feed through current: 2x 100 A
  • ICw: 10 kA 30 ms

Inverter Specifications:

  • Input Voltage Range (V DC): 19 - 33 V
  • Output voltage when in inverter mode: 230 VAC, ± 2% / Frequency 60 Hz ± 0,1%
  • Continuous Output Power at 25°C (VA): 5000 VA
  • Continuous Output Power at 25°C (W): 4000 W
  • Continuous Output Power at 40°C (W): 3700 W
  • Continuous Output Power at 65°C (W): 3000 W
  • Peak Power (W): 10000 W
  • Input Current (A DC): 118
  • Power Factor Range: ±0.8
  • Maximum Output fault current: 53 A 1 sec.
  • Maximum Efficiency (%): 95
  • Zero Load Power (W): 35 W
  • Zero load Power in AES mode (W): 30 W
  • Zero Load Power in Search Mode (W): 15 W

Charger Specifications:

  • Charge Voltage Absorption (V DC): 57,6 V
  • Charge Voltage Float (V DC): 55,2 V
  • Storage Mode (V DC): 52,8 V
  • Charge current house battery (A): 70 A
  • Charge current starter battery (A): 4 A (12 V and 24 V models only)
  • Battery Temperature Sensor: Yes

General Specifications:

  • Auxiliary output (5): 50 A
  • Programmable Relay (6): 3x
  • Protection: a - g
  • VE.Bus Communication Port: For parallel and three-phase operation, remote monitoring and system integration
  • General purpose com.port: Yes (2x)
  • Remote On-Off: Yes
  • Common Characteristics: Operating temp.: -20 to +60 ˚C Humidity (non-condensing): max. 95 %
  • Maximum altitude: 3500 m

Enclosure Specifications:

  • Common Characteristics: Material & Colour: aluminium (blue RAL 5012) Protection category: IP20, pollution degree 2, OVC III
  • Battery-Connection: Four M8 bolts (2 plus and 2 minus connections)
  • 230 VAC-Connection: Bolts M6
  • Weight: 30 kg
  • Dimensions (H x W x D): 444 x 328 x 240 mm

Standards:

  • Safety: EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1
  • Emission, Immunity: EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3

Product Manuals

Victron Energy Quattro 48V/5000W/70-100/100 120V VE.Bus Inverter Charger Product Manuals




Energy Storage System

Automatic Generator start-stop

Solar & Wind Priority

VictronConnect configuration guide for VE.Bus products

Product Warranty

Victron Energy Product Warranty

Victron Energy warrants its products to be free from defects in workmanship and materials for a period of 5 years from the date of purchase by the end-user, with a maximum of 66 months from the Victron Energy invoice date. Exceptions on this are: lead-acid batteries; 2 years from date of purchase by the end-user, with a maximum of 30 months from the Victron Energy invoice date, Lithium batteries; 3 years from date of purchase by the end-user. In addition to this, proof of correct battery usage is required when making a battery warranty claim.

For a 10% surcharge on the net price for products that came with a 5-year warranty, an additional 5 years of warranty can be purchased, bringing the total warranty to 10 years. Warranty extensions need to be applied for ultimately one year before expiration of the original term.

During the warranty period, Victron Energy will, at its discretion, repair, replace or credit the defective product free of charge. The warranty does not include performing or reimbursing de‐installation, transportation, and re‐installation. This warranty will be considered void if the unit has suffered any physical damage or alteration, either internally or externally, and does not cover damages arising from improper use like:

• Reverse of battery polarity.

• Inadequate connection.

• Mechanical shock or deformation.

• Contact with liquid or oxidation by condensation.

• Use in an inappropriate environment(dust, corrosive vapor, humidity, high temperature, biological infestation...).

• Breakage or damage due to lightning.

• Connection terminals and screws destroyed or other damages, like overheat, due to insufficient tightening.

• For any electronic breakage except due to lightning (reverse polarity, over‐voltage due to external cause), the state of the internal control diode and/or the input/output X and Y capacitors determine the warranty.

This warranty will not apply where the product has been misused, neglected, improperly installed, or repaired by anyone else than Victron Energy or one of its authorized Repair Centres. In order to qualify for the warranty, the product must not be disassembled or modified.

Repair, replacement or credit are our sole remedies and Victron Energy shall not be liable for damages, whether direct, incidental, special, or consequential, even caused by negligence or fault.

Victron Energy owns all parts removed from repaired products. Victron Energy uses new or reconditioned parts made by various manufacturers when performing warranty repairs or building replacement products. If Victron Energy repairs or replaces a part of a product, its warranty term is not extended.

All remedies and the measure for damages are limited to the above.

Victron Energy shall in no event be liable for consequential, incidental, contingent or special damages, even if having been advised of the probability of such damages. Any and all other warranties expressed or implied arising by law, course of dealing, course of performance, usage of trade or otherwise, including but not limited to implied warranties of merchantability and fitness for a particular purpose, are limited in duration to a period of five (5) years from the date of purchase, with the exception of batteries. For lead acid batteries a two (2) year period applies and for lithium batteries a three (3) year period applies.
