RUiXU Busbar | 5 x 3/8" Terminal Post + 5 x 14mm Fastening Nuts (work with OP140 or OP200)

RUiXU
Top Authorized Dealer
Manufacturer Warranty Included
SKU RX5600
Original price $85.00 - Original price $85.00
Original price
$85.00
$85.00 - $85.00
Current price $85.00
Availability:
in stock, ready to be shipped

Get it between -

Profile Pic

Have a question? Talk to one of our trusted experts today!

Instant Live Chat: Chat IconChat Now

Call or Text us: Phone Icon 415-481-4075

Price Match Policy

Price Match

Here at OffGrid Living Solutions, we want to offer you the best prices online.

If you happen to find a lower price for the same product, we will guarantee to match their price or beat their price. Note, this does not apply to all products in the store. Please reach out to us via email or chat if you want a price match or price beat.

For the policy to apply, please send us a screenshot, link, or any other evidence of the product being priced lower than ours before making the purchase.

Refer to our Price Match Policy Rules.

Refunds & Returns Policy

At OffGrid Living Solutions, we are proud to have the best refund and return policies in the industry. If you’re not satisfied with your purchase for any reason, you may return it to us within 30 days for a refund.

If you have a problem with our order (there are missing components, damages, or the product is not functioning), please reach out to us as quickly as possible. Some of the problems can be resolved by going through the product manual or the product FAQs.

Refer to our Refunds & Return Policy for more details.

Shipping & Delivery

Order Processing

Once we receive your order, we will send you a confirmation email. Then we will process the order by confirming that the product is in stock and ready for shipment. If any of the items in your order are back-ordered, we will reach to you via email or phone and you may choose to either wait or receive a 100% refund.

Please allow 1-3 days for processing your order.

Shipping

We ship to the lower 48 continental United States only at this time.

Shipping times and shipping method will depend on the specific product and brand you purchase. If you have any shipping question, feel free to ask on the chat or email us at info@offgridlivingsolutions.com.

We will send tracking information by email the same day the shipping tracking number is created/available.

Before you sign the shipping bill, please THOROUGHLY INSPECT YOUR ITEM. Signing for the receipt of a damaged product removes the liability of the shipping company and OffGrid Living Solutions. Once you accept your shipment as non-damage, your item is your property.

Delivery time

Shipping Timeline listed above is an estimate. Please call or message the web chat for precise ETAs.

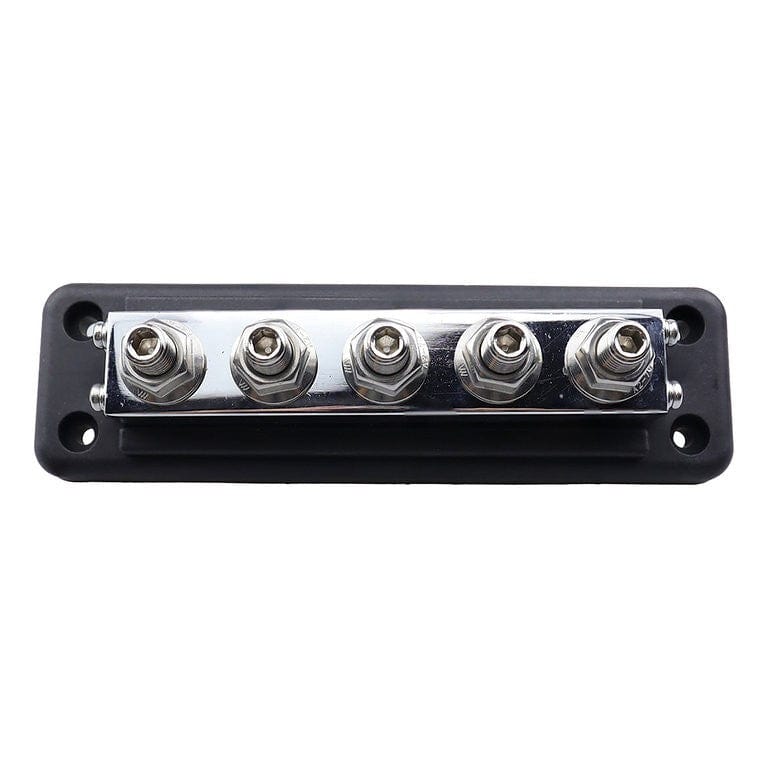

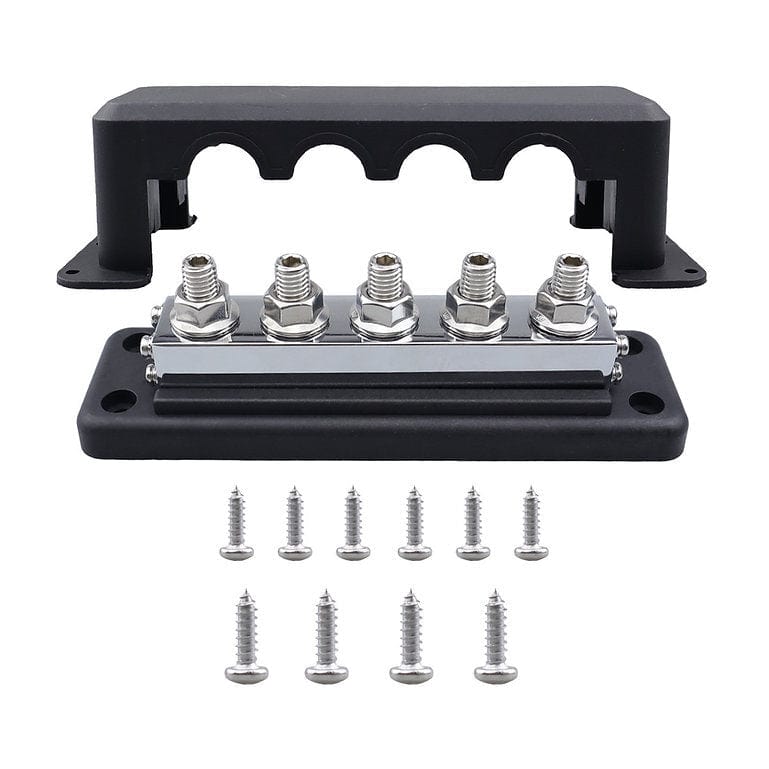

RUiXU Busbar | 5 x 3/8" Terminal Post + 5 x 14mm Fastening Nuts (work with OP140 or OP200)

RX5600

Dimensions (HxWxD)(with cover) :2.2 x 8 x 2.2 inch / 55 x 204 x 56 mm

Weight:1.7 lb / 0.75 kg

  • Heavy Duty 5-Post Power/Ground Distribution Busbar
  • (X5) 3/8" Terminal Post & (x4) 14mm Fastening Nuts
  • Constructed out of Highly Conductive Nickel Coated Copper
  • Features a Robust Polymer Mounting Base
  • Each busbar is fitted out with a removable protection cover

Product Specifications

RUiXU Busbar | 5 x 3/8" Terminal Post + 5 x 14mm Fastening Nuts (work with OP140 or OP200) Product Specifications

Max. current 600 A
Max. Voltage 70 VDC
Terminal diameter 3/8 inch / 9.53 mm
Terminal height 0.76 inch / 19 mm
Terminal material Stainless steel
Flange nut material Stainless steel
Recommended torque 180 lbf·inch / 20 N·m
Screw terminals diameter #8 (0.164 inch) / 4.2 mm
Screw material Stainless steel
Recommended torque 17 lbf-inch / 2 N·m
Busbar material Tin-plated copper (19 x 24 mm)
Base material ABS, black, UL 94 V-0
Cover material ABS, black, UL 94 V-2
Weight(RX5600) 1.7 lb / 0.75 kg
Dimensions (HxWxD)(with cover) 2.2 x 8 x 2.2 inch / 55 x 204 x 56 mm

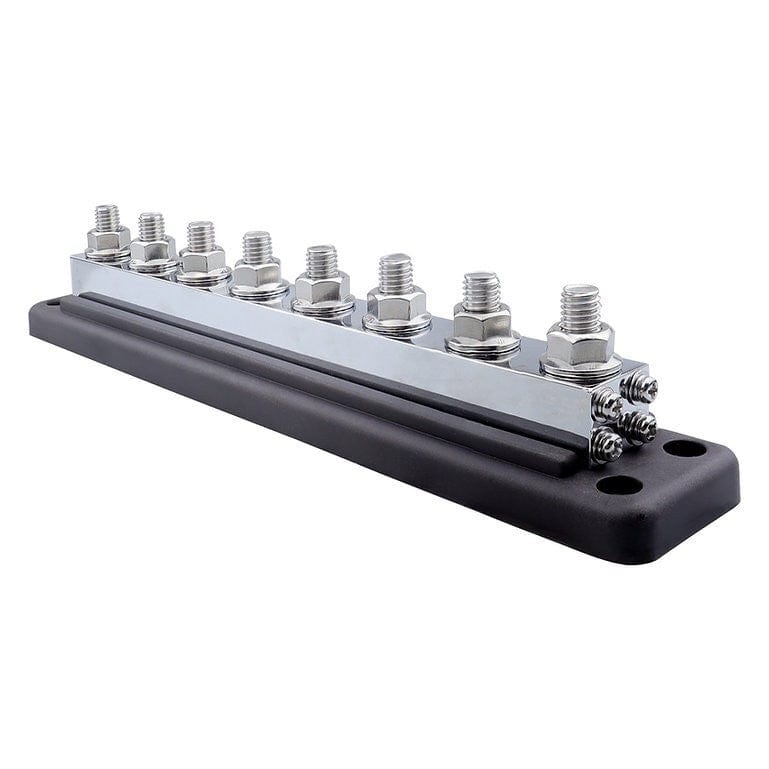

Weight(RX8600) 2.9 lb / 1.3 kg
Dimensions (HxWxD)(with cover) 2.2 x 12.4 x 2.2 inch / 56 x 316 x 56 mm
