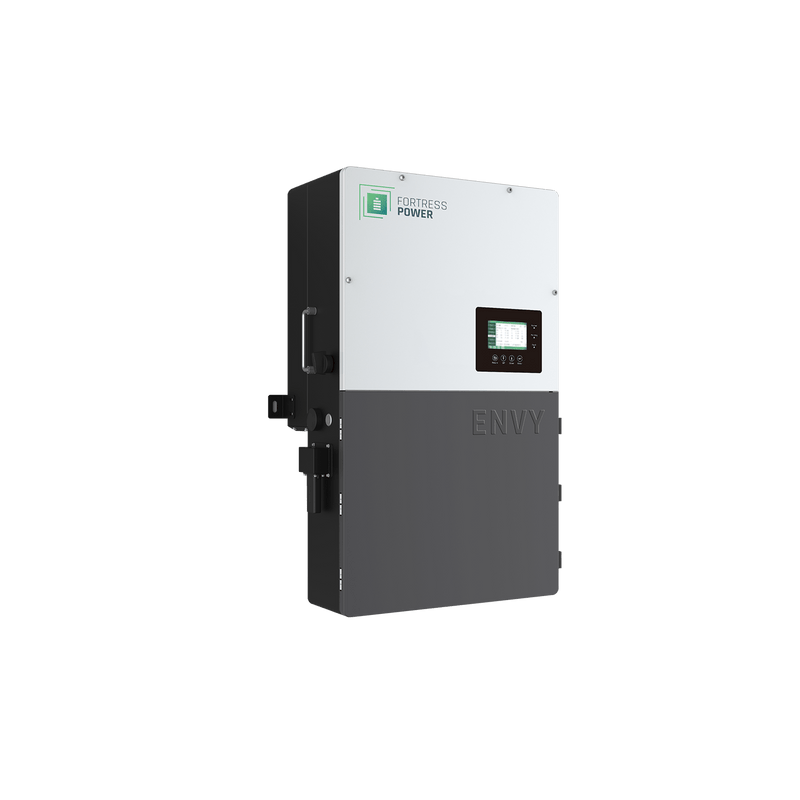

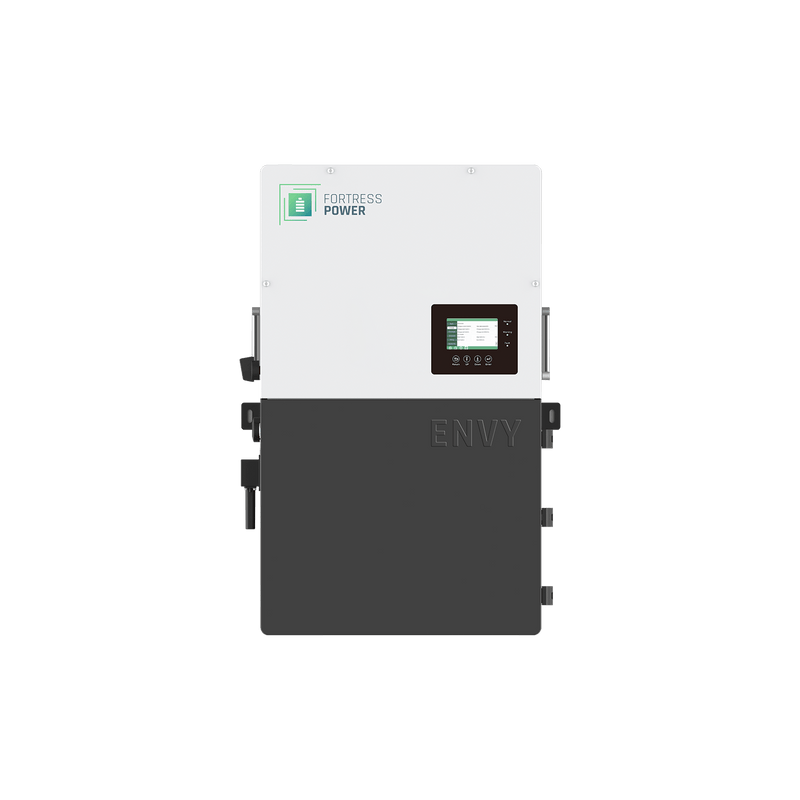

Fortress Power Envy True 12kW All-In-One Inverter | 120/240VAC | 48VDC

Description

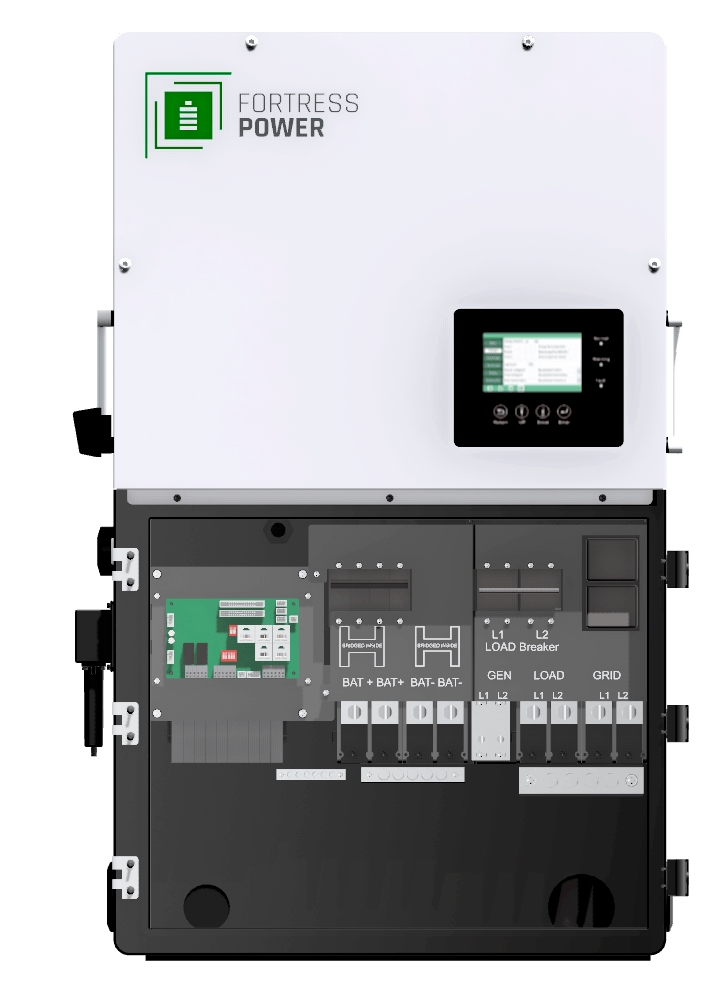

The Fortress Power Envy True 12 kW – a whole-home, all-in-one 12kW inverter solution. Paired with the Fortress Power eFlex 5.4 kWh, the eVault MAX 18.5 kWh or LFP-10 MAX batteries, the Envy features a 200A AC passthrough providing up to 12kW (50A @ 240V) or 10.4kW (50A @208V) of whole-home backup power or small commercial. The Envy features a built-in generator input with AC/DC coupling, on- and off-grid capabilities, plus a 3 MPPT output allowing for a maximum of 21 kW PV  array. The Envy is equipped with a built-in APsmart Module Level Rapid Shutdown Transmitter and Button, along with Pre-built AC & DC breakers allowing for fast installation and commissioning. Use our online monitoring app to access  your system from anywhere.

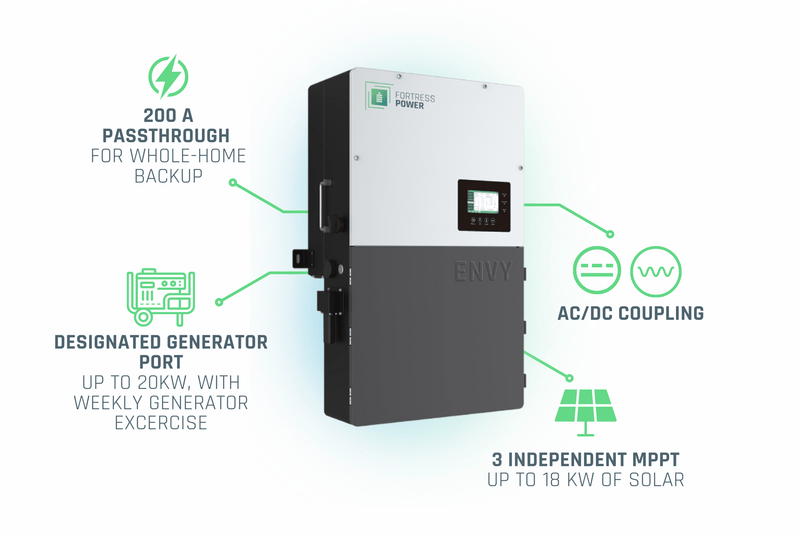

Key Features:

  • 200A AC Passthrough Current For Whole Home Backup
  • 3 MPPT Output For Max. 21 KW PV Array
  • AC, DC And AC/DC Combined Coupling
  • IP65 Rated For Indoor & Outdoor Installation
  • Built-In Generator Input
  • 10 Units In Parallel
  • Local And Remote Monitoring/App
  • Color LCD Touch Screen
  • Batch Settings

Supported Applications:

  • Backup
  • Off-Grid
  • Zero Export
  • Time-Of-Use
  • Peak Shaving
  • Demand Response Integration (Coming Soon)

Whole-Home Backup / AC Passthrough One-Line Diagram

Product Specifications

Fortress Power Envy True 12kW All-In-One Inverter | 120/240VAC | 48VDC Product Specifications

Input DC (PV Side)
Max. DC Input Power for Single MPPT 12000W/7000W/7000W 1 x 12kW, 2 x 7kW
Max. PV Input Power 21000W
Max. PV Power Delivered to Battery & AC Outputs 18000W
DC Input Voltage Range 100V-600V
Nominal DC Input Voltage 360V
Full Power MPPT Voltage Range 230V-500V
Max. DC Input Current 25A/15A/15A
MPPT Number/(Strings per MPPT) 3(2/1/1)
Output/Input AC (Grid)
Continuous AC Power to Grid 12000W (240V)
Continuous AC Power to Load with Grid or Generator 48000W (240V)
Nominal Output Voltage 120/240V Single Split Phase, 120/208V Single Split Phase, 120/208V Three Phase
Max. Continuous AC Current 50A @ 240V
Nominal AC Frequency 50Hz/60Hz
Output AC (Off-Grid)
Max. Output Power 12000W (240V)
Nominal Output Voltage 120/240, Single Split Phase, 120/208V Single Split Phase, 120/208V Three Phase
Nominal Output Frequency 50Hz/60hZ
Nominal Output Current 50A @ 240V / 50A @208V
Peak Power 14kW 10 minutes / 16kW 5 minutes / 20kW 500ms
Switching Time Seamless
Battery Parameters
Compatible Battery Type Lithium and Lead acid batteries
Nominal Battery Voltage 48V
Battery Voltage Range 48V-56V
Maximum Charging/Discharging Current 250A
Maximum Charging/Discharging Power 12000W
Efficiency
MPPT Efficiency 99.9%
Max. Efficiency 97.5%
CEC Efficiency 96.5%
Protection
Anti-islanding Protection YES
DC Switch YES
Ingress Protect Degree NEMA 4X, IP65
SPD Protection YES
AFCI OPT
RSD Built-in APsmart Transmitter
General Data
Dimensions 31.1 x 20.5 x 10.4 in (790 x 520 x 264 mm)
Weight 127 lbs (58 kg)
Display Color LCD
Ambient Temperature Range -20 to 60 °C (-4 to 140 °F)
Cooling FAN
Communication RS485/Wi-Fi/CAN
Standard & Certification
Certifications UL1741, UL1741SB, IEEE1547A, Rule 21, ISO-NE, FCC15 class B, HECO, CEC, Luma, SGIP, NOM
Warranty 10 Years

Product Manuals

Envy True 12 kW Inverter – Data Sheet

Envy True 12 kW Inverter – Manual

Fortress Power System Design Tool

OGPe Certification

NOM Certification

ENVY 12KW UL1741 SB 3RD Ed. ATM

ENVY-eVault Max UL9540 3RD Ed.

Product Warranty

Envy True 12 kW Inverter – Warranty Letter

Product FAQs

Fortress Power Product FAQs

1) Does energy storage work well with my solar system?

Yes. On the grid? Absolutely! Energy storage adds a lot of value to your solar systems. It keeps your solar system operating when your utility service is interrupted. Without energy storage, your PV system will be forced to shutdown when the grid is off.

If you live off grid, energy storage enables you to use the clean solar energy to power your home day and night.

Fortress Power also knows you’re a fan of conservation—energy storage saves both your surplus solar energy and your cash since it reduces on grid energy dependence.

2) Can I use energy storage without solar panels?

Absolutely. For on grid clients, a home energy storage unit  stores energy from your electricity provider. If an outage occurs, home energy storage can provide up to 24 hours of potentially life-saving power. Need more reassurance? Fortress Power offers batteries with larger storage capabilities, completely customizable to your needs. And, like you, we appreciate saving money. When electricity is at its lowest daily rate, our smart energy storage units use that period to charge. When peak electric use occurs, our energy storage units can discharge power to suit your lifestyle.

3) What about power outage protection?

Power interruptions shouldn’t disrupt your schedule. An energy storage system will keep your solar system operating during grid outages. When paired with solar panels, an energy storage system supplies unlimited energy delivery. The solar panels power your home during the day and use any excess power to charge the battery. At night, the system keeps your space bright. When used without solar panels, power outage support is dependent on battery size and your energy use. Batteries providing at least 12 hours of backup power are safest.

4) Are home energy storage systems financially beneficial?

You can use the energy storage to shelve your peak usage. When electricity is at its lowest daily rate, our smart energy storage uses that period to charge. During the peak periods, our energy storage system can power your home, reducing your electricity bill. Clients with solar panel installations enjoy a faster return on investment.

5) Do I receive incentives on my energy storage system?

If your energy storage is powered by solar panels, you are eligible for 30% federal tax credit. Many states and utilities provide rebates for homes and businesses with energy storage systems, aiming for grid resilience.
