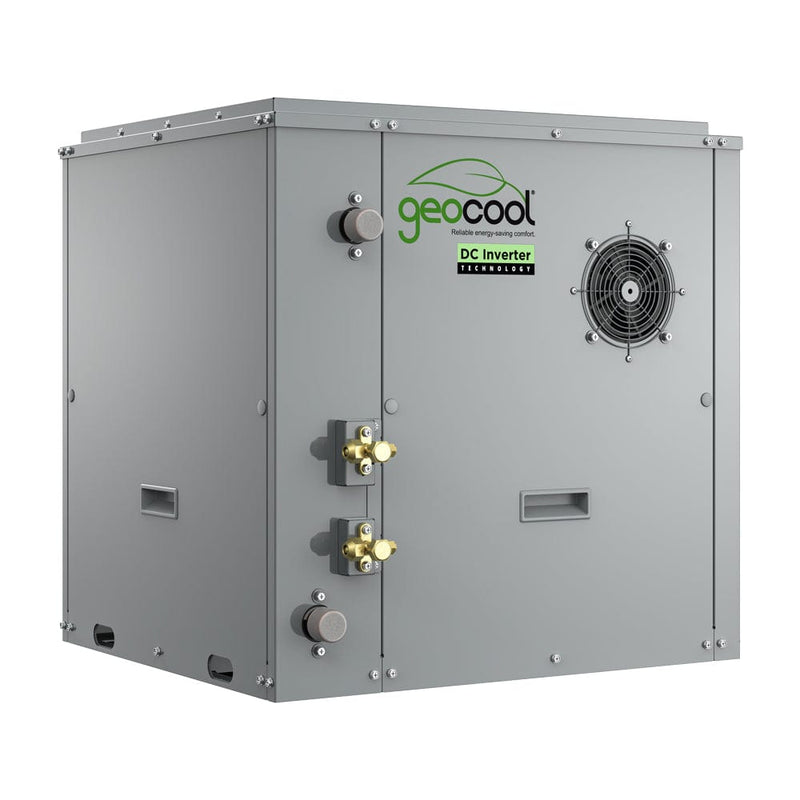

MRCOOL® GeoCool 48K BTU 4T Multi Positional 230V 1-Phase 60Hz DC Inverter Compressor

Description

Embrace comfort with the GeoCool® all DC Inverter Technology. Equipped with the highprecision Electronic Expansion Valve, allowing for more accurate temperature control while also keeping the utility bill down. The flexibility of four independent modules makes it easy to meet the installation requirements of different air outlet methods and applications. Space constraints are less of an issue when a custom built layout is an option! For a long term solution with lower maintenance costs, design your own GeoCool® Inverter Series Geothermal unit

Features

  • Up to 70 EER
  • DC Inverter technology
  • Closed loop - Full load - Cooling Current Input: 13 Heating Current Input: 17 || Open Loop- Full Load - Cooling Current Input: 10 Heating Current Input: 17
  • Open loop Operating Pressure Range: Min: 25 psi || Max: 50 psi
  • Closed loop Operating Pressure Range: Min: 25 psi || Max: 50 psi
  • Cooling Operating Range: Inlet: 44.6F - 107.6F || Ambient: 50F - 100.4F || Return Air: 60.8F - 89.6F
  • Heating Operating Range: Inlet 21.2F - 89.6F || Ambient: 39.2F - 84.2F || Return Air: 50F - 80.6F
  • Open loop - Full load - EER: 27.02 COP: 4.2 || Open Loop- Part Load - EER: 70.97 COP: 6.2
  • Closed loop - Full load - EER: 18.29 COP: 3.4 || Closed Loop- Part Load - EER: 48.79 COP: 5.1
  • Full Fluid Flow (GPM): 7.93 || Partial Fluid Flow (GPM): 7.93
  • Open loop - Full load - Cooling Capacity: 50500 BTU Heating Capacity: 48000 BTU || Open Loop- Part Load - Cooling Capacity: 13300 BTU Heating Capacity: 11000 BTU
  • Closed loop - Full load - Cooling Capacity: 46500 BTU Heating Capacity: 40000 BTU || Closed Loop- Part Load -Cooling Capacity: 14500 BTU Heating Capacity: 9800 BTU



Product Specifications

MRCOOL® GeoCool 48K BTU 4T Multi Positional 230V 1-Phase 60Hz DC Inverter Compressor

Brand Name GeoCool
Series GeoCool Inverter Series
Model GCSHPM048IN
GTIN 840255577960
UPC 840255577960
Unit Type Geothermal Heat Pump
Equipment Type Compressor
Configuration Multi Positional
Short Description GeoCool 48K BTU 4T Multi Positional 230V 1-Phase 60Hz DC Inverter Compressor
EER Up to 70
Voltage (V) 208 / 230
Cooling Capacity (BTU) 50500
Heating Capacity (BTU) 46500
Phase 1
Cycle 60
Max Fuse Breaker (A) 35
Min Circuit Ampacity (A) 26
Color Gray
Refrigerant Type R-410A
Inverter DC
Color Family Gray
Refrigerant Type R-410A
Refrigerant Volume (Oz) 35.27
Base Parts Warranty 10 years
Base Labor Warranty 5 Year Limited
UL Listed Yes
Energy Star Certified Yes
AHRI Certified Yes
Has Batteries No
Contains Electronics Yes
Contains Chemicals Yes
Contains Aerosol Yes
Contains Compressed Gas Yes
Proposition 65 Warning Yes
Net Depth (In) 22.44
Net Height (In) 25.12
Net Width (In) 24.80
Net Weight (lbs) 231.53
Gross Depth (In) 27.56
Gross Height (In) 30.71
Gross Width (In) 28.54
Gross Weight (lbs) 254
