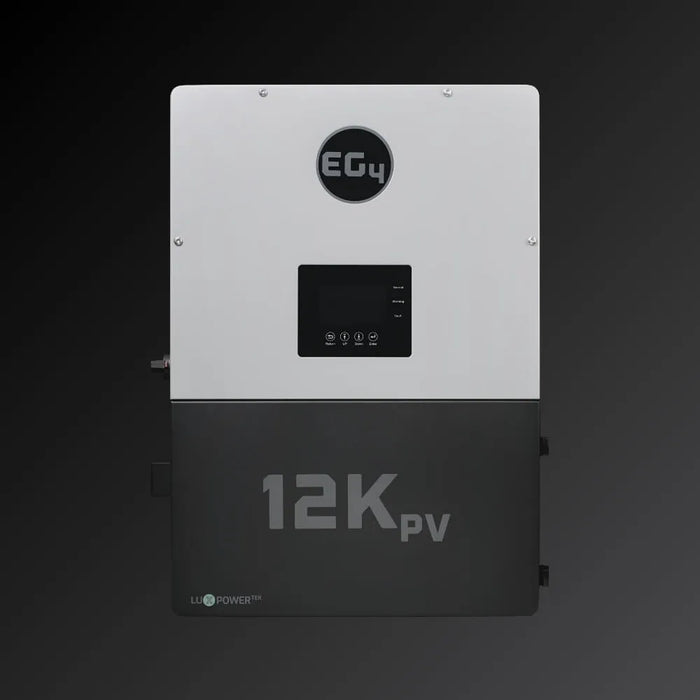

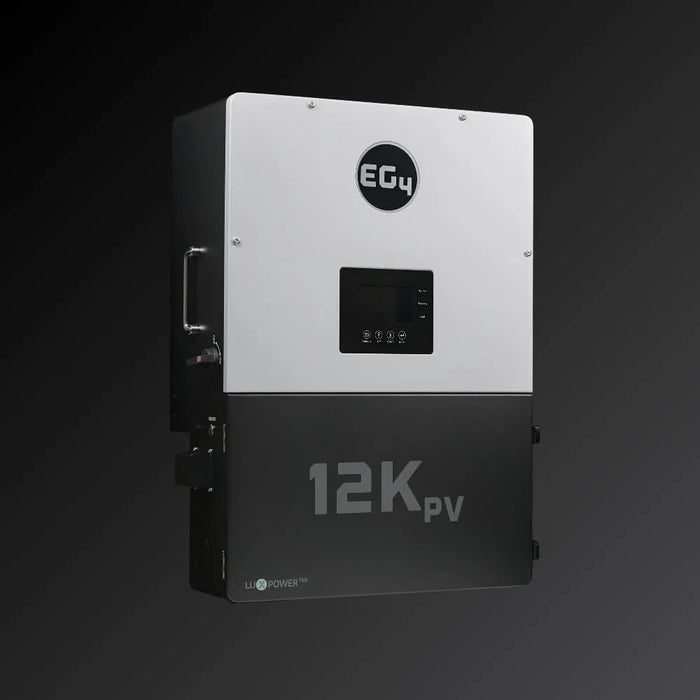

EG4 12kPV 48V | 12000W Input | 8000W Output | All-In-One Hybrid Inverter

EG4 12kPV 48V | 12000W Input | 8000W Output | All-In-One Hybrid Inverter

Description

EG4 12kPV Hybrid Inverter: The Ultimate Power Solution for Rural and Suburban Homeowners

Introducing the EG4 12kPV Hybrid Inverter, a pinnacle of innovation and efficiency in solar power technology. This 48V, split-phase hybrid inverter is perfect for rural and suburban homeowners seeking energy independence. Seamlessly integrating into existing systems, it offers unmatched performance and versatility for both residential and light commercial applications. Sharing the same architecture and firmware as the EG4 18kPV, it powers loads and charges batteries efficiently, maximizing your solar energy investment.

Key Features and Benefits:

• 8kW Continuous AC Output: Delivering consistent and reliable power for a wide range of applications, from powering your home to supporting small businesses.
• MPPTs Rated to 12kW, Accepts Maximum 15kW Array: Maximizing solar power input for optimal energy harnessing, perfect for both residential solar power systems and light commercial setups.
• Dual High Voltage (120-500 VDC) and High Amperage (25A) MPPTs: Accommodates high-output solar panels with ease, ensuring efficient energy conversion.
• Parallel Up to 10 Units for 80kW of Power Output: Expand your system effortlessly to meet growing energy demands, ideal for scalable energy solutions.
• Split Phase Hybrid Design: Ensures efficient power management and distribution, suitable for off-grid living and grid-tied systems with battery backup.
• Handles Up to a 4,000W Imbalance for 30 Minutes: Provides flexibility in managing power loads, essential for emergency power supply and renewable energy projects.
• Fast 10ms Transfer Time: Protects sensitive equipment with rapid power switching, crucial during power outages.
• 134A Surge Capacity: Supports high surge loads for demanding applications, such as backup power solutions.
• Export-Limiting Applications: Optimized for scenarios where power export needs to be controlled, enhancing energy storage systems.
• Compatible with Generator Input: Ensures continuous power supply during outages, providing reliable backup power.
• 10-Year Warranty: Guarantees long-term reliability and customer satisfaction.
• RSD/ESS Shutdown: Meets safety standards for rapid shutdown capabilities.
• Advanced Monitoring and Control: Utilize the EG4 monitoring app/website to monitor system performance, perform updates, and track EG4 battery performance.
• Harness Multiple Power Sources (AC/DC) Efficiently: Versatile design for maximum energy utilization, supporting hybrid solar systems.

Why Choose the EG4 12kPV Hybrid Inverter?

The EG4 12kPV Hybrid Inverter is engineered with cutting-edge technology to deliver superior performance and reliability. Its high-frequency split-phase design and advanced monitoring capabilities make it the ultimate solution for both residential and light commercial applications. Whether you need a single unit or an expansive system of up to 10 inverters, the EG4 12kPV offers unparalleled flexibility and efficiency.

Homeowners will benefit from the robust power output, rapid transfer times, and comprehensive monitoring tools that ensure optimal system performance and energy management. The EG4 12kPV Hybrid Inverter is a powerful, reliable, and efficient solar power solution that meets your energy needs today and in the future. Go off-grid, stay connected, or sell back to the grid. The choice is yours.

Product Specifications

EG4 12kPV 48V | 12000W Input | 8000W Output | All-In-One Hybrid Inverter Product Specifications

Number of MPPTs: 2 (25A each)
PV Input Voltage Range: 120-500 VDC
PV Input: 12kW PV, accepts maximum 15kW array
AC Output: 8kW continuous
Peak Power: .05s = 16kW, 1s = 12kW, 1min = 10kW, 12min = 8.8kW
Transfer Time: 10ms
Parallel: up to 10 units for 80kW
Outdoor Rated: IP65
Dimensions: 29.5×20.5×11.2 in (750×520×285mm)
Weight: 110 lbs. (50kg)

Product Features

“Share Battery” Setting: Simplifies installation, saving time and money when paralleling multiple inverters.

Design: Split phase hybrid

Load Imbalance Handling: Can manage up to 4,000W imbalance for 30 minutes.

Generator Compatibility: Integrated generator input for added system reliability.

RSD/ESS Shutdown: Ensures safety with rapid shutdown capabilities.

Monitoring and Updates: Use the EG4 monitoring app/website to monitor system, perform system updates, as well as monitor EG4 battery performance (select battery series with firmware update).

Modular Design: Allows for easy expansion and scalability as power needs grow.

EG4 Warranty: 10 Years

Product Manuals

EG4 12kPV 48V Product Manuals

Product Warranty

EG4 Product Warranty

EG4 Electronics offers a 10-year Full Parts Replacement or Full Product Replacement Warranty from the date of original inverter (EG4 18kPV-12LV) purchase.

Your warranty must be registered within the first year of purchase or provide proof of purchase from an EG4 authorized distributor to remain valid. If you choose not to register or cannot provide proof of purchase, your warranty may be invalidated.

This limited warranty is to the original purchaser of the product and is one time transferable only if the product remains installed in the original installation location. All parts exchanges are covered during the warranty period. Outside of the continental US, replacement shipping charges may apply.

Product that is not purchased through an EG4 approved vendor is not covered under this warranty. A list of approved vendors can be found on our website. Reselling or removing the product from the original installation site will void the warranty.

Warranty Exclusions – EG4 Electronics has no obligation under this limited warranty for products subjected to the following conditions (including but not limited to):

1. Damages incurred during installation/reinstallation or removal
2. Poor workmanship performed by an individual, installer, or a firm
3. Damages caused by mishandling the product or inappropriate environmental exposure
4. Damages caused by improper maintenance or operating outside the specified operating conditions
5. Tampering, altering, and/or disassembly of the product
6. Using product in applications other than what the manufacturer intended
7. Lightning, fire, flood, earthquake, terrorism, riots, or acts of God
8. Any product with a serial number that has been altered, defaced, or removed
9. Any unauthorized firmware updates/upgrades/patches
10. Damages incurred from a voltage or current spikes due to open-loop lithium battery communications

EG4 product warranty is a limited warranty – EG4 limits its liability in the event of a product defect to repair or replacement in accordance with the terms of this limited warranty. EG4 is not responsible for any additional or indirect damages that may arise from the malfunctioning of the product. These damages could be incidental or consequential, including without limitation, any liability for the loss of revenue, profits, or time. EG4 shall not be liable for any direct or indirect loss of life, including but not limited to bodily injury, illness, or death arising from the misuse or mishandling of the product, whether caused by negligence or otherwise.

Return Policy and Warranty Claims Procedure: Contact your original place of purchase.

Product FAQs
