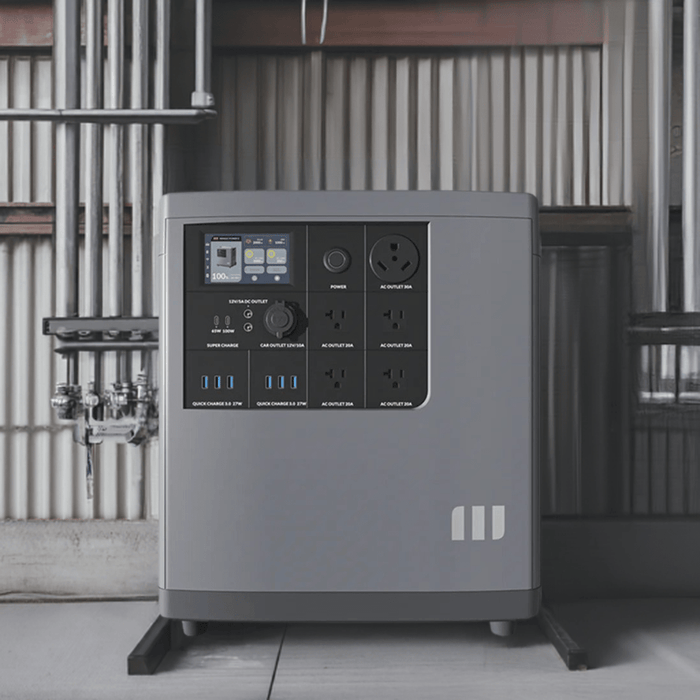

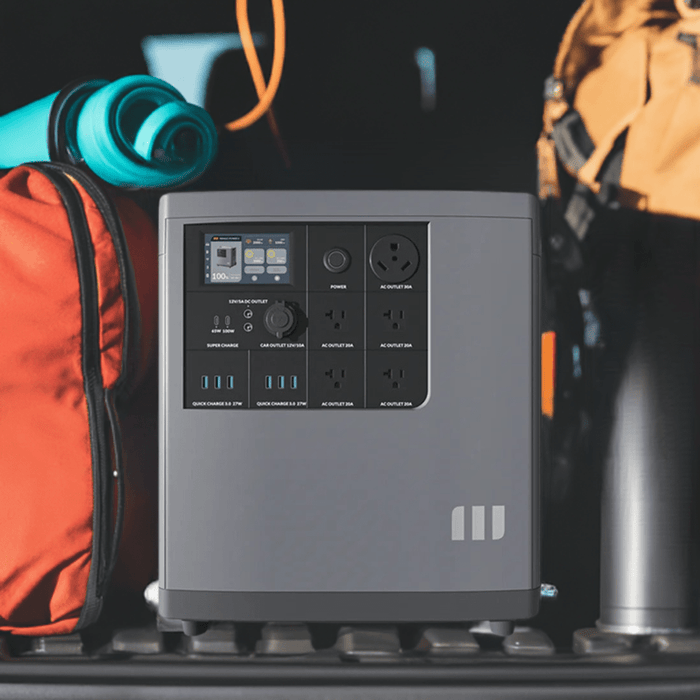

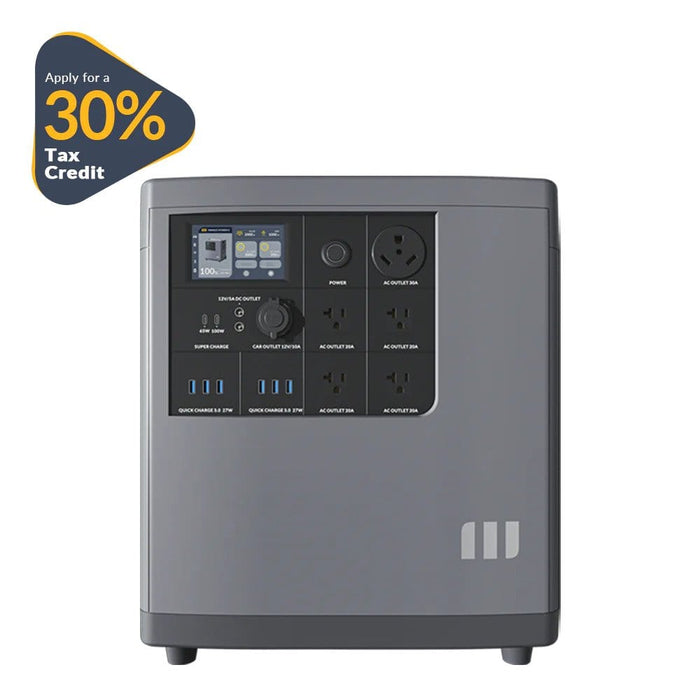

Mango Power E Home Backup and Portable Power Station
Description
Highlights:
- Meet 99% of Your Portable Power and Home Backup Needs
- 240v Split-phase for Heavy-duty Appliances
- Power Your Essential Appliances in the Event of a Power Outage
- World’s Best CATL Ultra-durable LFP Battery Cells
3.5 kWh - 14 kWh Capacity 3000W - 6000W AC Output
240V Split-Phase for Heavy-Duty Appliances

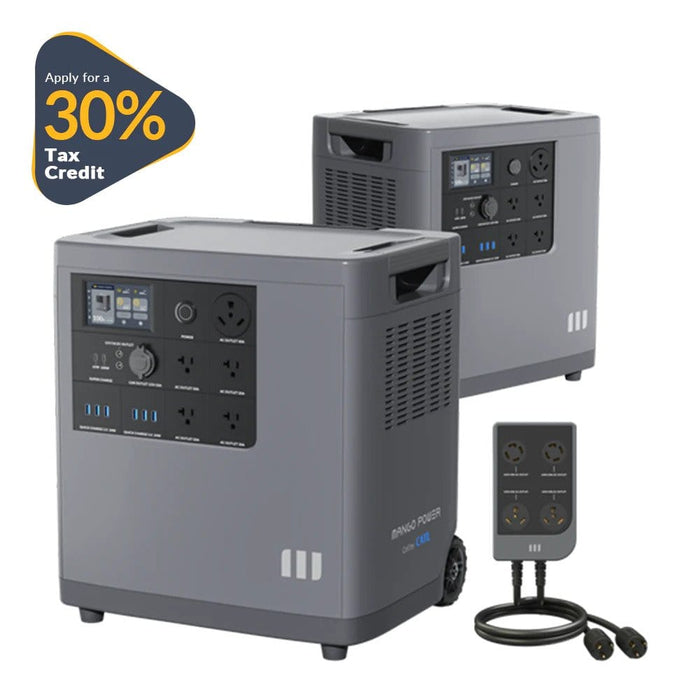

With the mSocket Pro* accessory, the Mango Power E becomes a high-powered split-phase generator capable of delivering 240V output so you can run large power-consuming appliances such as heaters, dryers, water pumps, and more.
Use The Same Cells That Power the World’s Best EVs
The Mango Power E uses the same ultra-durable LFP battery cells as the world's best EVs. These cells charge faster, last longer, and are more reliable than other traditional NCA/NCM battery cells.
Even with up to five years' continuous use, charging, discharging, and recharging constantly, the Power E's best-in-class battery cells will still perform as well as they did when brand new.
Better Environmental Adaption
CATL's batteries can withstand temperatures from -20°C to 60°C. This allows our power stations to operate smoothly even in extreme cold conditions.
Power Your Essential Appliances in the Event of A Power Outage
By integrating Mango Power’s ecosystem into your home circuit*, you guarantee that at the moment a blackout strikes, you enjoy power security and grid independence with a seamless, uninterrupted flow of electricity powering your lights, refrigerators, computers, and any other essential devices you have plugged in.
Meet 99% of Your Home Power Needs
Product Specifications
Mango Power E Home Backup and Portable Power Station Product Specifications
| General |
|
| Net Weight* |
100.llbs(45.4kg) |
| Size |
17.8x13.6x19.4 inches(452x345x494 mm) |
| Working Temperature |
Charging: -10°C~45°C(14℉~113℉)
Discharging: -20°C~45°C(-4℉~113℉) |
| Warranty |
5 years |
| Certificates |
Meets US and International Safety and EMI Standards |
|
Quick Charge
|
Recharge to 80% in 1 hour
Recharge to 100% in 1.5 hours |
| Running Noise |
<40dB under no-load
<51dB under full-load" |
|
|
| IP level |
IP21 |

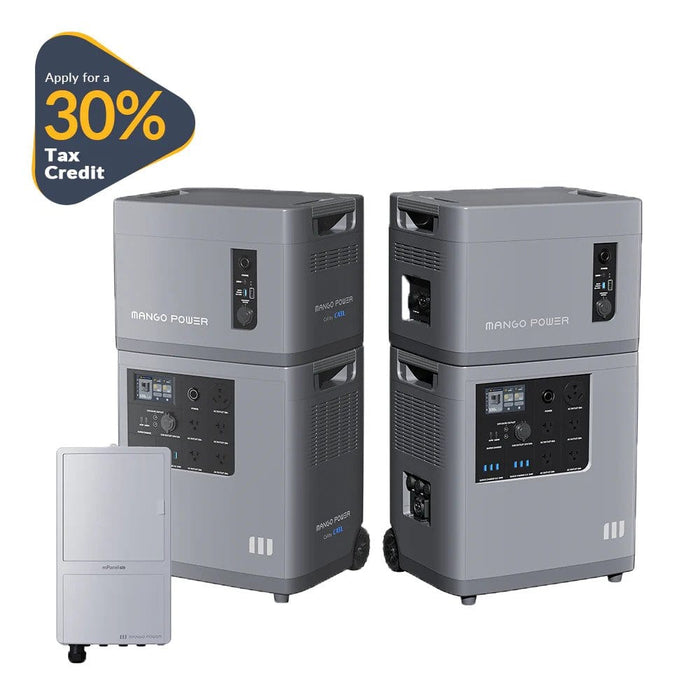

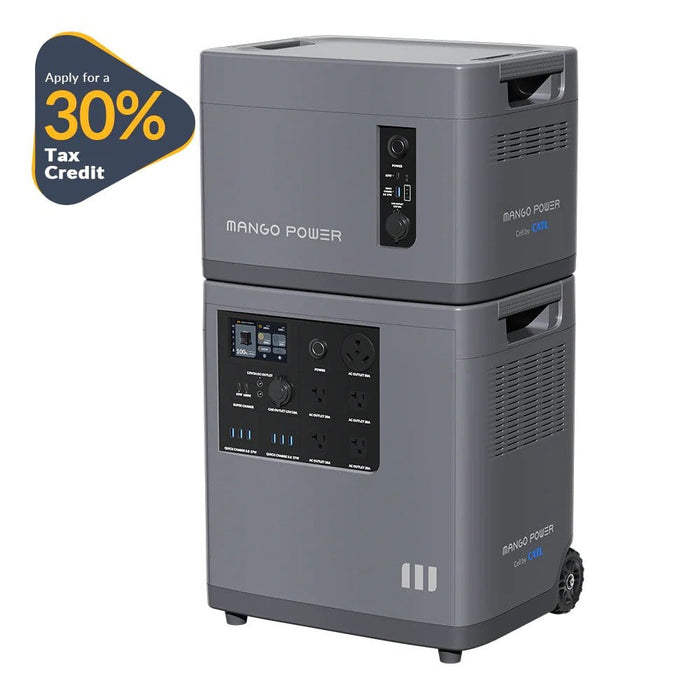

| Capacity Expansion |
Can expand the capacity by one E Battery to 7.06kWh |
|
|

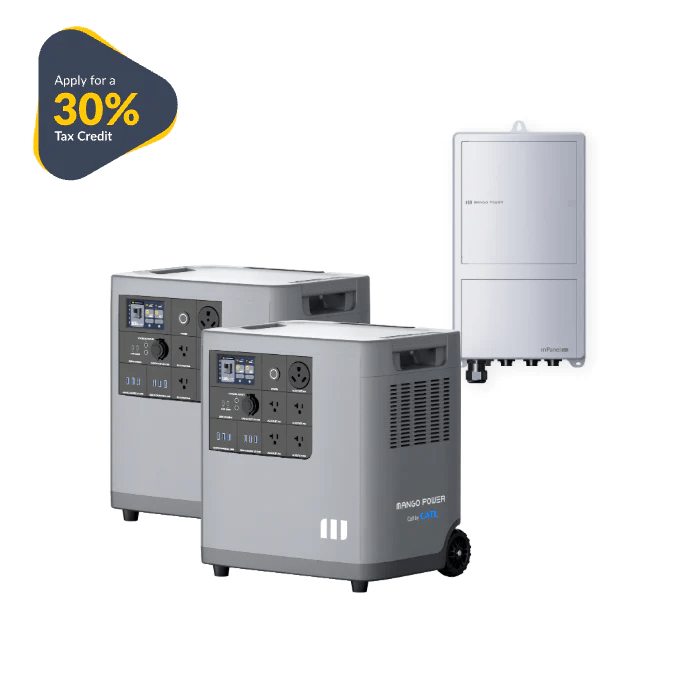

| Power Expansion |
Can expand the power by two to 6kW |
| 240V split phase |
With mSocket Pro or mPanel(sold separately), can output 240V split phase, 6000W |

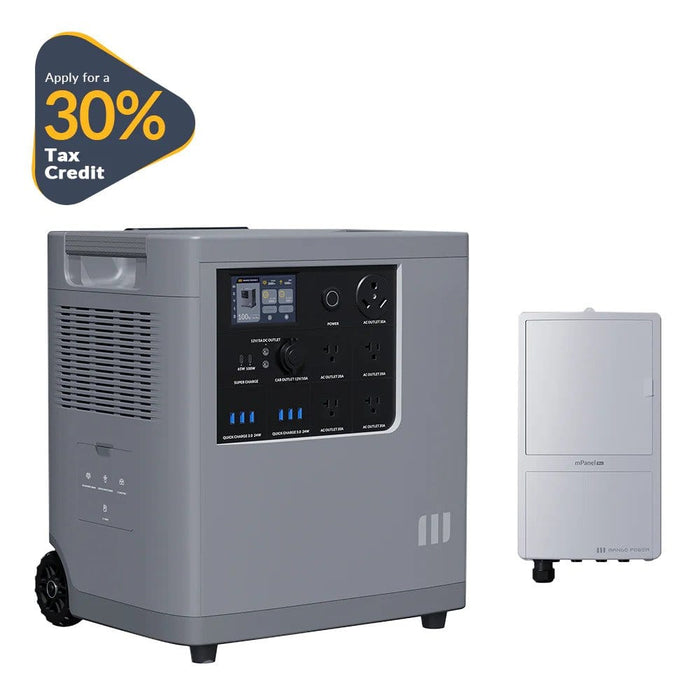

| Home Backup |
Support(need mPanel) |
| Battery |
|
| Battery Capacity** |
3.53 kWh |
| Cell Chemistry |
World’s best CATL LFP |
| Life Span** |
Capacity Retention >70% after 6000 cycles (@25℃, +0.5C/-0.5C) |
| Battery Management Systems |
Over Voltage Protection, Overload Protection, Over Temperature Protection, Short Circuit Protection, Low Temperature Protection, Low Voltage Protection, Overcurrent Protection |
| Max charging rate |
Up to 1.1C |
| Input |
|
| Charging Method |
AC Wall Outlet, Solar Panel, Generator |
| AC Charging |
Max 3000W |
| Solar Charging |
Max 2000W (60V-150V) |
|
|
| EV AC Charging Spot |
Adapter needed |
| Generator |
|
| Inverter |
|
| Rated AC Output Power |
3000W, 120V AC, 60Hz |
| Power of Over-load |
3150W<load≤3750W, 5mins;
3750W<load≤4500, 60s
4500W<load≤4800W, 10s
4800W<load, less than 40ms |
| Maximum Power Point Trackers |
1x, Support Both Roof and Portable Solar Panels |
| Inverter Efficiency |
Up to 88% |
| Output |
|
| Output Ports |
16 |
| AC Output |
4 x 20A |
| USB-A |
6 x QC 3.0 24W |
| USB-C |
1 x PD 65W+1 x PD 100W |
| Car Power Output |
12V/10A |
| DC5521 Output |
2x12V/5A |
| AC RV Port |
30A |
|
Smart Control
|
|
| Connection |
Bluetooth and Wi-Fi |
| App Remote Control |
Yes |
| OTA Upgrade |
Yes |
| Customized Mode |
Backup Power Mode/ Economical Mode(AC Load Mode) |
| Smart Measurement |
Yes |
| Smart Energy and Carbon Footprint Report |
Yes |
| Smart Notifications |
Yes |
| Screen |
|
| Size |
4.3 inches |
| Touch Screen |
Yes |
| Resolution Ratio |
480 x 800 |
| Screen pigment |
16.7M colors |
| Safety |
|
| Smart Self-Check System |
Yes |
Product Manual
Product Warranty and Return Policy
Mango Power Product Warranty & Return Policy
Overview
1.1 Purpose
This policy aims to improve your after-sales experience and standardize processes in order to provide high-quality and efficient services.
1.2 Applicable Customers
Applicable customers are those who have purchased NA/US Mango Power product(s) and request after-sales services directly from Mango Power in this region. If there are eCommerce platforms, sales channels or customers who have promised different after-sales policies with the following description, please contact your place of purchase to implement your warranty.
NA Region Scope: The Contiguous US
1.3 NA After-Sales Service Contact Information
NA customers can reach Mango Power through the following methods:
General Questions: +1(510)726-0166 Monday - Friday 9AM - 5PM (ET)
Technical Hotline: +1(510)405-4633 Monday - Friday 9AM - 5PM (ET)
E-mail: support@mangopower.com
1.4 Product Series
| Mango Power E |
mPanel Pro |
Solar Panel 200W(18V) |
| E battery |
mSocket |
Solar Panel 200W(36V) |
| Mango Power Union |
mSocket Pro |
Solar Panel 200W(72V) |
|
30A Fast Charging Cable |
Solar Parallel Connection Cable |
*Table updated March 2023
This limited warranty policy only applies to Mango Power's products purchased in North America through official channels.
Warranty Period
2.1 Warranty Period of Products
| Category |
Warranty |
| Mango Power E |
60 months |
| E battery |
60 months |
| Mango Power Union |
36 months |
| mpanel Pro |
36 months |
| mSocket |
12 months |
| mSocket Pro |
12 months |
| 30A Fast Charging Cable |
12 months |
| Solar Panel 200W (18V) |
12 months |
| Solar Panel 200W (36V) |
12 months |
| Solar Panel 200W (72V) |
12 months |
| Solar Parallel Connection Cable |
12 months |
*Mango Power E CATL Battery Cell - 10 Years Warranty
Battery Cells have a 10-year warranty, provided they are maintained and used under normal use and storage. If the Battery Cell has any failure caused by non-personnel within 10 years, Mango Power will provide a completely free repair service. (Note: The BMS circuit board and LED light board in the Battery Cell do not belong to the 10-year warranty, and still follow the standard 5-year warranty).
2.2 Warranty Period Determination
a. Valid Proof of Purchase:
The following proof of purchase documents are required when customers claim warranty from Mango Power:
1) Orders placed on mangopower.com: Sales invoice, order confirmation email and logistics information that clearly show the description of the product, price, sales channel, sales date and delivery date;
2) Products purchased from other channels: Valid purchase invoice, logistics evidence, or order number(s) confirmed by Mango Power customer service team;
b. Warranty Start Date:
1) The warranty period begins the day your product is received at your delivery address.
2) Most Mango Power products have a warranty that exceeds 12 months. If you cannot locate shipping information to prove your warranty start date, we will default to a 30-day shipping time from your date of purchase, with the warranty starting 30 days after purchase.
c. Defect Reporting Date:
Whether or not your defect is covered under warranty depends on the date you report your defect. The defect reporting date can be from one of the following methods: Phone contact date, support email date or in-app report date, the earliest of which shall be considered your defect report date.
d. Unconditional Return Period:
You can return your product unconditionally within 30 calendar days of receiving your product provided it was ordered on mangopower.com in the contiguous US.
e. Warranty Repair Service Period:
According to the above-mentioned warranty table in section 2.1, products under warranty that do not meet the requirements of refund or replacement can request a warranty repair service. f. The replacement product or parts will either inherit the remaining warranty period of the original product, or be given at least 3 months warranty, the longer period shall prevail.
This limited warranty policy only applies to Mango Power's products purchased in North America through official channels.
Return. Refund & Replacement Services
3.1 Unconditional Returns Policy
a. Unconditional returns policy only applies to orders placed on mangopower.com in the US region; customers can request a return within 30 days after receiving the product;
b. For products purchased from other channels, Mango Power does not accept unconditional returns. Please contact your purchase channel first;
c. For unconditional returns, customers can request a refund after confirmation with Mango Power customer service.
3.2 Requirements of Refunds & Replacements
a. For products and all accessories, no man-made damage is found;
b. All accessories and parts need to be sent back to Mango Power with the main product;
c. Parts and accessories should be securely packaged for return delivery in order to ensure good condition and to prevent damage during transportation.
3.3 Product Returns Process
a. Send an email request to support@mangopower.com with the product delivery information.
b. Our Service Team will determine whether your order is eligible. After confirming your order is eligible, they will give you a Return Material Authorization (RMA) number and provide you with a prepaid return shipping label (label to be determined by the support team). They will also provide instructions on how to properly package the product to return it safely. Do not ship the product until you have received the proper safety directions on how to ship the product. You must clearly mark the RMA number on the package and include your proof of purchase date with the product;
c. Mango Power will process your return request according to the return policy.
d. Please do not return the items without the RMA confirmation from the Mango Power Service Team. For returns without confirmation, the refund or replacement may not be processed;
3.4 Policy of Refunds & Replacements
a. For returns of US orders and if the product is in good condition, we'll charge a transaction fee + shipping cost. If there are quality issues with your product, we will give you a full refund or a one-time free replacement;
b. After Mango Power receives your refund request, we'll issue the refund within 14 business days after we receive your product. We will then notify you by email once your refund has been processed. If you don't receive the refund after 14 business days, please contact support@mangopower.com;
c. After Mango Power receives your product replacement request, we'll send a replacement product within 7 business days of receiving your product.
3.5 Refunds & Replacements may not be provided when:
- The refund/replacement is requested after 30 days of receiving the product.
- The product is returned without confirmation by Mango Power customer service team.
- Legal proof-of-purchase, receipts, or invoices are not provided, can’t be found, or are reasonably believed to have been forged or tampered with.
- A product sent to Mango Power does not include all the original accessories, attachments, and packaging, or it contains items damaged by the user.
- Evidence is found of damage caused by collision, scorching, or unauthorized use or modification of the product, including exposure to moisture or water, entry of other foreign items (including but not limited to oil, sand, etc.) or improper installation or operation of the product is found.
- Product labels, serial numbers, water damage marks, etc. show signs of tampering or alteration.
- Damage is caused by uncontrollable external factors, including fires, floods, high winds, lightning strikes, or traffic accidents.
- The product has not been sent back to Mango Power within 15 calendar days after confirmation from Mango Power.
- Other circumstances that are not stated in this policy but Mango Power has sufficient proof to refuse.
This limited warranty policy only applies to Mango Power's products purchased in North America through official channels.
