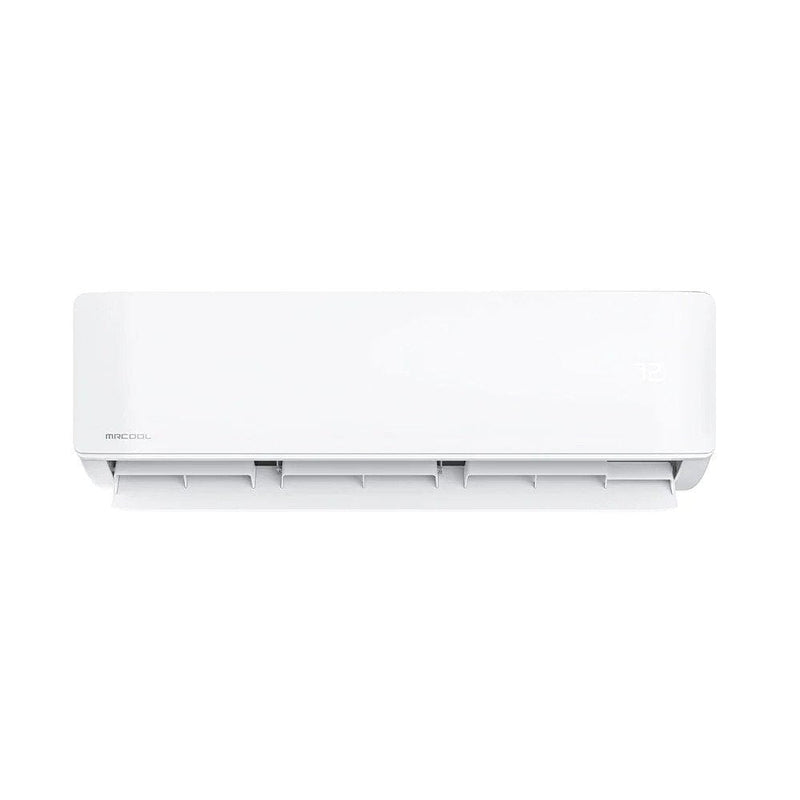

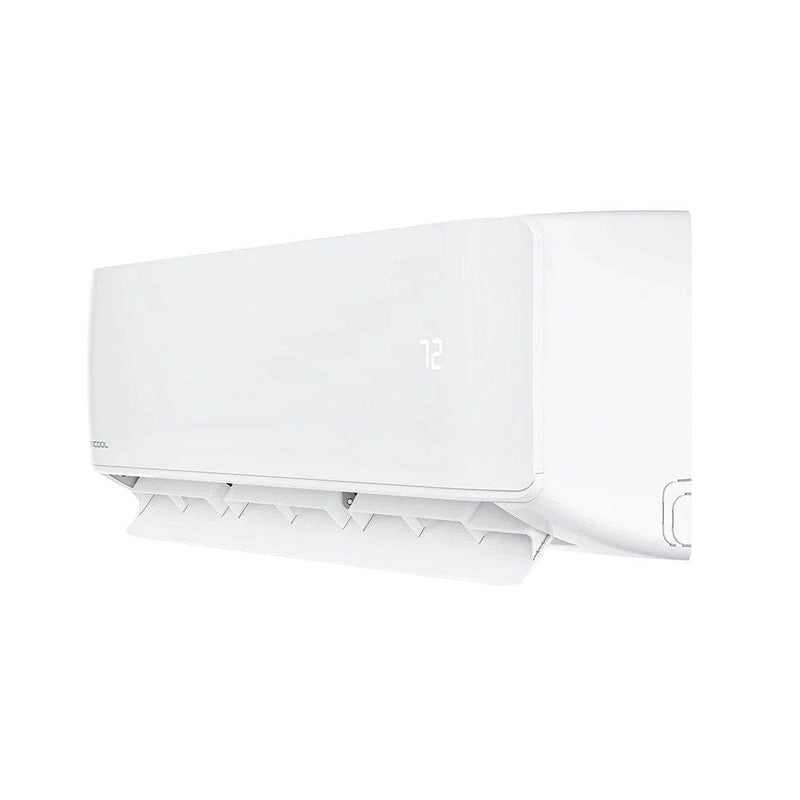

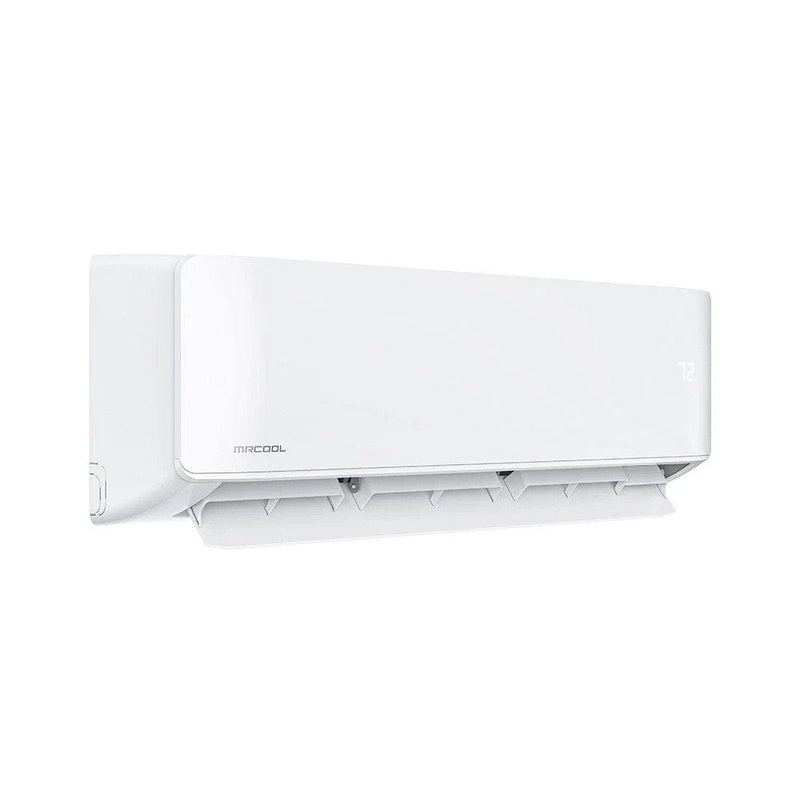

MRCOOL® E Star DIY 4th Gen 36k BTU 208-230V/60Hz Ductless Mini-Split Air Handler

Description

This product only includes an Air Handler (Indoor Unit).

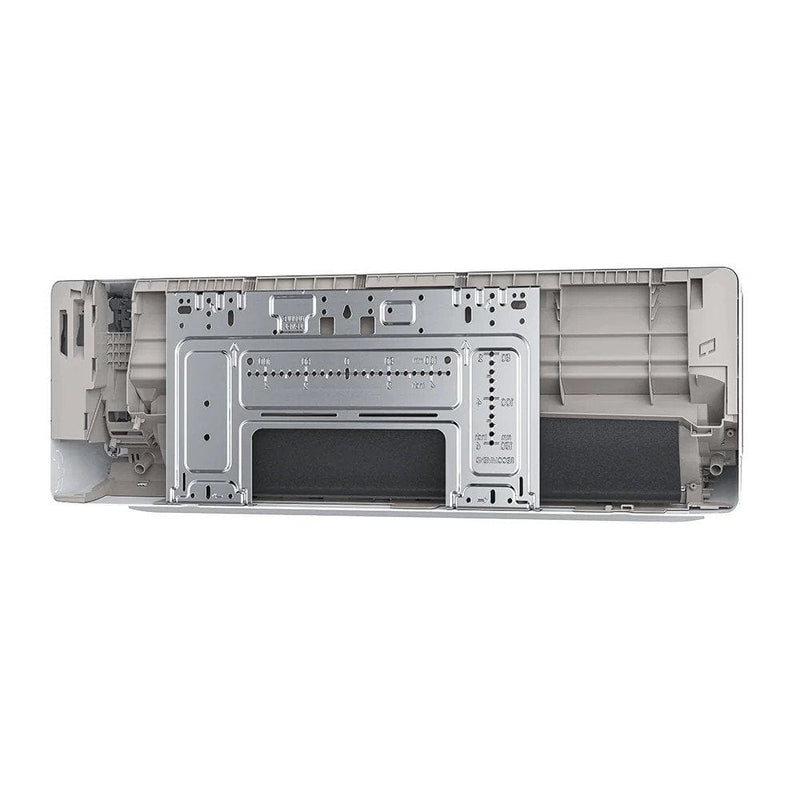

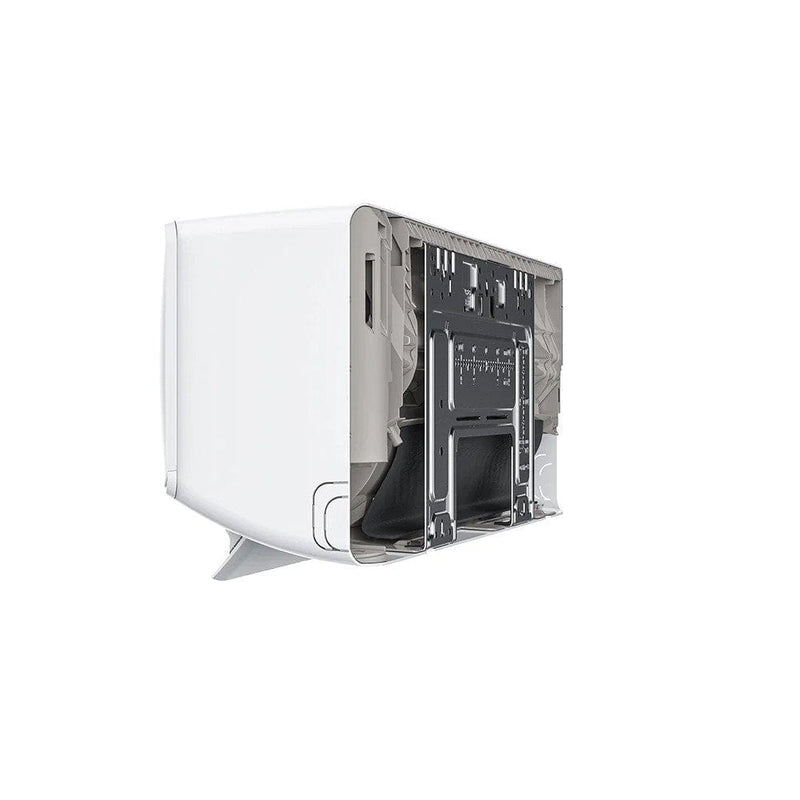

The MRCOOL® 4th Generation DIY 36K BTU Ductless Wall Mounted Air Handler is the highest capacity air handler in the DIY series and has the ability to cover an area up to 1,500 sq. ft. Even with that level of performance, it can still deliver an impressive 18 SEER efficiency rating when connected to a MRCOOL® Condenser. It also features multiple operating modes which include HEAT, COOL, AUTO, DRY (dehumidify), and SLEEP. To take the functionality even further, this unit can also be operated by your Apple or Android smartphone with use of our convenient Smart HVAC app. This air handler has a compact design which makes it easier to mount to most interior walls when using the included mounting plate. This air handler is also designed to be installed using MRCOOL's patented Pre-Charged Quick Connect Line Set. The quick connectors allow the line set to be installed in a few simple steps with two wrenches. It comes precharged with R-410A refrigerant, so no vacuuming or charging of the system is required once installed. Let the MrCool 4th Generation DIY 36K BTU Ductless Wall Mounted Air Handler take care of the heating and cooling of your home.

  • SmartHVAC app: WIFI control - control your DIY anywhere with your Apple or Android smart device and an Internet connection
  • Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty
  • Compatible with Amazon Alexa and Google Assistant
  • Includes the new DIY Pro™ Cable, an added safety feature to protect the wiring from the outside elements

Product Specifications

MRCOOL® E Star DIY 4th Gen 36k BTU 208-230V/60Hz Ductless Mini-Split Air Handler  Product Specifications

COOLING CAPACITY

36000 BTU

HEATING CAPACITY

36000 BTU

VOLTAGE

208-230 V

PHASE

1

CYCLE

60 Hz

MOUNT TYPE

Wall

COLOR

White

COLOR FAMILY

White

MAX COVERAGE AREA

Up to 1500 sqft

REFRIGERANT TYPE

R-410A

DECIBEL RATING

52/45/34

DECIBEL RATING LOW

34 dBA

DECIBEL RATING HIGH

52 dBA

INVERTER

Yes

MAX LINESET LENGTH

213.25 ft

LIQUID LINE SIZE

3/8 in

SUCTION LINE SIZE

5/8 in

BLOWER MOTOR RPM

1200/950/750

FAN ONLY OPTION

Yes

QUIET MODE

Yes

AUTO COOL

yes

WIFI COMPATIBILITY

Yes

APP COMPATIBILITY

Yes

WORKS WITH IOS

Yes

WORKS WITH ANDROID

Yes

REMOTE CONTROL INCLUDED

Yes

ENERGY STAR CERTIFIED

No

AHRI CERTIFIED

Yes

REGISTERED WARRANTY

Limited Lifetime Compressor

BASE WARRANTY

5-year Parts/7-year Compressor

BASE PARTS WARRANTY

5-year Parts

REGISTERED COMPRESSOR WARRANTY

Limited Lifetime Compressor

BASE COMPRESSOR WARRANTY

7-year Compressor

HAS BATTERIES

Yes

CONTAINS ELECTRONICS

Yes

CONTAINS CHEMICALS

Yes

CONTAINS AEROSOL

Yes

CONTAINS COMPRESSED GAS

Yes

PROPOSITION 65 WARNING

Yes

RESTRICTED STATES

GU;PR;VI

NET DEPTH

11.10 in

NET HEIGHT

14.25 in

NET WIDTH

49.57 in

NET WEIGHT

47.84 lbs

GROSS DEPTH

21.26 in

GROSS HEIGHT

19.69 in

GROSS WIDTH

56.69 in

GROSS WEIGHT

78.26 lbs

Product Manuals

Install Manual

Remote Manual

Service Manual

Product Warranty

Limited Lifetime Warranty

MRCOOL distributor (hereinafter “Company”) warrants this product against failure due to defect in materials or workmanship under normal use and maintenance as follows.

All warranty periods begin on the date of original installation. If the date cannot be verified, the warranty period begins one hundred twenty (120) days from date of manufacture. If a part fails due to defect during the applicable warranty period Company will provide a new or remanufactured part, at Company’s option, to replace the failed defective part at no charge for the part.

This limited warranty is subject to all provisions, conditions, limitations and exclusions listed on the right side.

LIMITATIONS OF WARRANTIES

ALL IMPLIED WARRANTIES AND/OR CONDITIONS (INCLUDING IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR USE OR PURPOSE) ARE LIMITED TO THE DURATION OF THIS LIMITED WARRANTY, SOME STATES OR PROVINCES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY OR CONDITION LASTS, SO THE ABOVE MAY NOT APPLY TO YOU.

THE EXPRESS WARRANTIES MADE IN THIS WARRANTY ARE EXCLUSIVE AND MAY NOT BE ALTERED, ENLARGED, OR CHANGED BY ANY DISTRIBUTOR, DEALER, OR OTHER PERSON, WHAT SO EVER.
