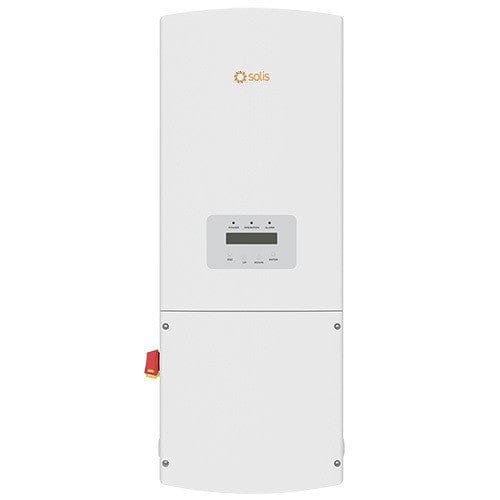

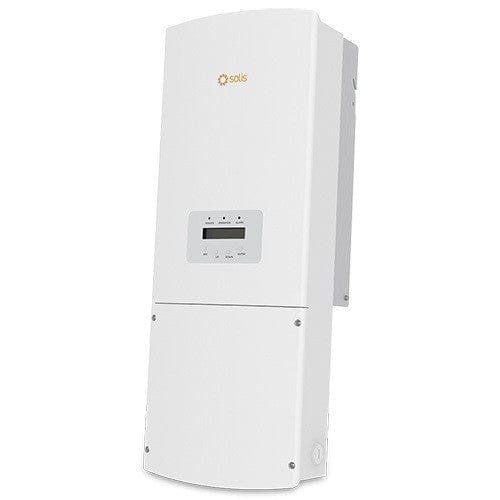

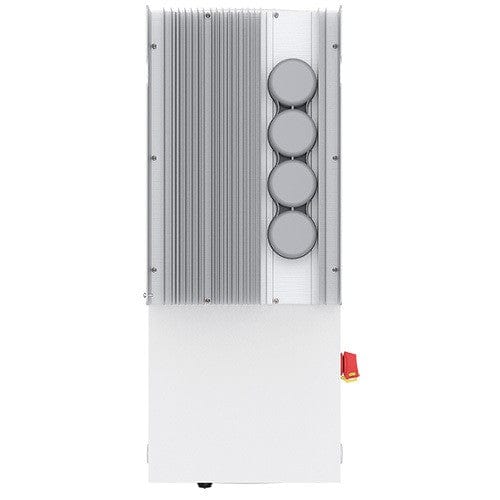

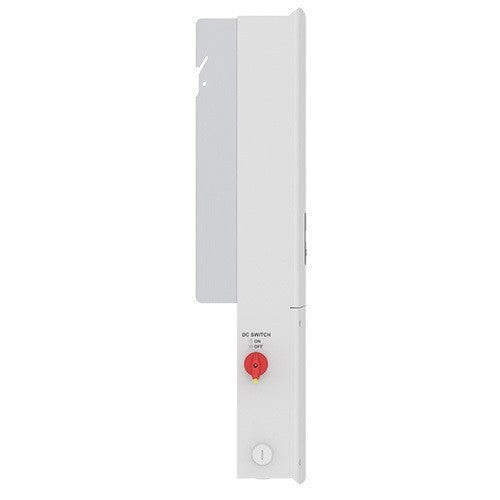

Solis Solis-1P3.6K-4G-US-APST, 3.6kW 4G Single phase Dual MPPT Solar Inverter with APS Transmitter
Description
Solis 3.6-5KW US plus version single phase string inverters have dual MPPTs which can be utilized in complex design environments. The maximum input current per string is up to 14A, which is compatible with new high-power and bifacial PV modules. A built-in (optional) ANSI C12.20, 0.5 Accuracy Class revenue grade meter will guarantee accurate data recording.
Product Features:
- String current up to 14A
- Support module level monitoring
- Max. efficiency 97.7% (CEC efficiency 97.1%)
- CA Rule 21 compliant and UL 1741 SB Certified
- Sunspec protocol with option cellular and WiFi
- Integrated module level rapid shutdown transmitter
- AFCI protection, proactively reduces fire risk
- 10 years standard warranty with extension options
- Fast and dynamic MPPTs and industry-leading DC voltage range
- Optional Built-in Revenue Grade Meter, ANSI C12.20-2010 compliance
Product Specifications
Solis Solis-1P3.6K-4G-US-APST, 3.6kW 4G Single phase Dual MPPT Solar Inverter with APS Transmitter Product Specifications
| Max. input voltage |
600 V |
| Start-up voltage |
120 V |
| Max. input current |
14 A / 14 A |
| MPPT number |
2 |
| Rated voltage |
330 V |
| MPPT voltage range |
90-520 V |
| Max. short circuit current |
22 A / 22 A |
| Max. input strings number |
2 |
| Rated output power |
3.6 kW |
| Max. output power |
3.6 kW |
| Rated grid frequency |
60 Hz |
| Max. output current for 208V grid |
17.3 A |
| THDi |
<3% |
| Max. apparent output power |
3.6 kVA |
| Rated grid voltage |
1?/PE, 240 V / 208 V |
| Max. output current for 240V grid |
15.0 A |
| Power Factor |
>0.99 (0.8 leading - 0.8 lagging) |
| Dimensions (W*H*D) |
13.9*31.9*6.5 in (353*810*165 mm) |
| Weight |
33.1 lbs (15 kgs) |
| Topology |
Transformerless |
| Self-consumption (night) |
<1W |
| Relative humidity |
0-100% |
| Operating ambient temperature range |
-13F to 140F (-25C to 60C ) |
| Storage environment |
-13F to 176F (-25C to 80C) |
| Ingress protection |
TYPE 4X |
| Cooling concept |
Natural convection |
| Max. operation altitude |
13120ft (4000m) |
| Compliance |
UL1741SB, UL1741SA, IEEE 1547-2018, UL1699B, UL1998, FCC Part15 ClassB, California Rule 21, Heco Rule 14H, NEC 690.12-2020, CAN/CSA C22.2107.1-1 |

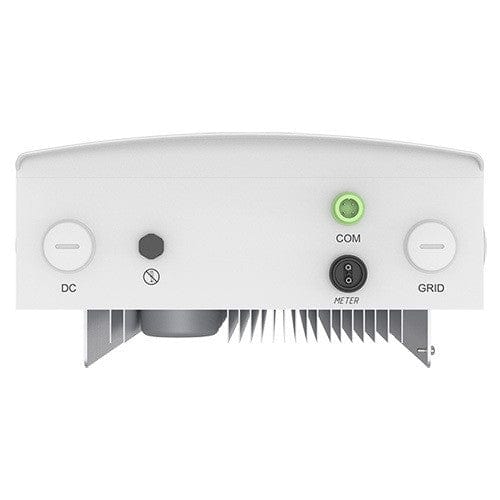

| DC connection |
1 knockout for 3/4" conduit at bottom, side and back, Screw clamp terminal |
| Display |
LCD |
| AC connection |
1 knockout for 3/4" conduit at bottom, side and back, OT termina |
| Communication |
RS485, Optional |
Product Manual
Solis Solar Inverter 3.6kw 4G Single phase Dual MPPT. US Version with APS transmitter with 10 years warranty (NS) Manual
Solis Solar Inverter 3.6kw 4G Single phase Dual MPPT. US Version with APS transmitter with 10 years warranty (NS) Data Sheet
Solis Solar Inverter 3.6kw 4G Single phase Dual MPPT. US Version with APS transmitter with 10 years warranty (NS) Compatible
Solis Solar Inverter 3.6kw 4G Single phase Dual MPPT. US Version with APS transmitter with 10 years warranty (NS) Certificate
Solis Solar Inverter 3.6kw 4G Single phase Dual MPPT. US Version with APS transmitter with 10 years warranty (NS) Certificate
Solis Solar Inverter 3.6kw 4G Single phase Dual MPPT. US Version with APS transmitter with 10 years warranty (NS) Certificate
Solis Solar Inverter 3.6kw 4G Single phase Dual MPPT. US Version with APS transmitter with 10 years warranty (NS) Certificate
Solis Solar Inverter 3.6kw 4G Single phase Dual MPPT. US Version with APS transmitter with 10 years warranty (NS) Certificate
Product Warranty
Solis Inverter are manufactured by Ginlong (Ningbo) Technologies Co., Ltd. (The Company) (refered to as Ginlong) provides the following Warranty to the purchaser (The Customer) of the Inverter (The Goods). (The Customer is deemed to be the owner of the installed Goods at first sale
Warranty Terms
The Company warrants all Goods to be free from defects in material or workmanship under normal use and service for a period of 5 years from the date of sale to the
Customer.
The Warranty covers the cost of repairs or replacement parts. The Goods must be returned to the Company for inspection.
The company may repair or replace faulty components at its discretion.
This warranty extends the Customer’s statutory rights and cannot be construed so as to diminish such statutory rights.
Warranty Extension
The purchaser may apply for a warranty extension within 12 months of purchase by providing the serial number of the unit along with proof of purchase. An extended
warranty can be purchased for a further 5 years (Total 10 years).
Warranty Limitations
The Warranty is valid only for Goods purchased either directly from the Company or from an authorized reseller of the company.
The Warranty is not transferable and applies to brand new Goods only.
Defective parts replaced under Warranty become the property of the Company.
The Warranty does not cover:
- The Warranty does not cover:
- Consequential damages including but not limited to loss of revenue;
- Claims by third parties other than the Customer;
- Defects of installation. (Except where the installation is performed by the Company);
- Goods damaged as a consequence of incorrect installation. (Except where the installation is performed by the Company);
- Items ancillary to installation not supplied by the Company;
- Duties, import/export fees or costs and other general administrative costs;
- Damage to Goods caused by misuse, improper handling or unauthorized modification;
- Loss or damage occurring whilst in transit;
- Accidental or willful damage;
- Any Goods described in a quotation or delivery note as 'ex-display' or ‘reconditioned’. (A separate Warranty extension may have been issued
to cover such Goods.)
Labour, travel and delivery (to and from customer) will be charged if goods returned found to be not faulty following a warranty claim.
Warranty Claims Procedure
To make a warranty claim the following information needs to be provided:
- Completed RTM Inspection Form
- Product Model (ie. Solis 1.5kW) and Product Serial Number (ie. A1110011)
- Copy of the invoice for the inverter
- Copy of the installation report and installation certificate
The authorized reseller will liaise with the Company regarding repair or replacement. The cost of repair or replacement will be borne by the Company provided the Warranty has been validated and the Warranty period has not expired.
Where repairs must be effected at the Company’s headquarters, the Company will endeavor to minimize the down time for the Goods.
