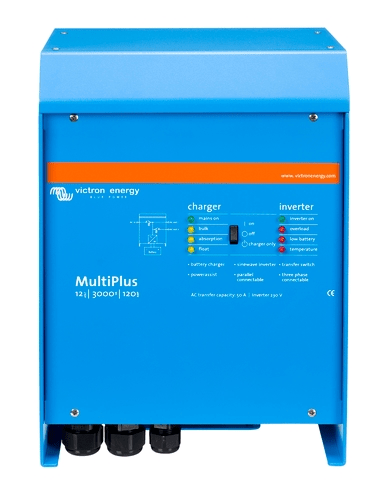

Victron Energy MultiPlus 12V/2000W/80-50 120V VE.Bus (UL) Inverter Charger
Description
The MultiPlus, as the name suggests, is a combined inverter and charger in one elegant package. Its many features include a true sine wave inverter, adaptive charging, hybrid PowerAssist technology, plus multiple system integration features.
Models
800VA, 1200VA, 1600VA, 2000VA, 3000VA, 5000VA
Unique PowerAssist feature
The MultiPlus will prevent overload of a limited AC source, such as a generator or shore power connection. First, battery charging will automatically be reduced when otherwise an overload would occur. The second level will boost the output of a generator or shore side supply with power taken from the battery.
Uninterrupted AC power (UPS function)
In the event of a grid failure, or when shore or generator power is disconnected, the inverter within the Multi is automatically activated and takes over the supply to the connected loads. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption.
Virtually unlimited power thanks to parallel operation
Up to 6 Multis can operate in parallel to achieve higher power output. Three phase or split phase operation is also possible. Please check our datasheets to see which models have paralleling, three phase and split phase capabilities.
Remote Monitoring and Control
When coupled with a GX device (e.g. Cerbo GX) you can monitor and control your Multi and system or systems' locally (LAN) or remotely via the internet from anywhere in the world, using the free VRM app and free VRM portal website. Access can be from a phone, tablet, laptop or PC for multiple operating systems. There is no end to the level of control, from adjusting your Multi to auto starting a backupgenerator and more...
Product Specifications
Victron Energy MultiPlus 12V/2000W/80-50 120V VE.Bus (UL) Inverter Charger Product Specifications
Specifications:
- PowerControl: Yes
- PowerAssist: Yes
- Transfer Switch (A): 50
- Parallel and 3-phase operation: Yes
Inverter Specifications:
- Input Voltage Range (V DC): 9,5 – 17 V, 19 – 33 V
- Output voltage: 120 VAC, ± 2% / Frequency 60 Hz ± 0,1%
- Continuous Output Power at 25°C (VA): 2000
- Continuous Output Power at 25°C (W): 1600
- Continuous Output Power at 40°C (W): 1450
- Continuous Output Power at 65°C (W): 1100
- Peak Power (W): 4000
- Maximum Efficiency (%): 92 / 94%
- Zero Load Power (W): 9 / 11 W
- Zero Load power in AES mode (W): 7 / 8 W
- Zero Load Power in Search Mode (W): 3 / 4 W
Charger Specifications:
- AC Input: Input voltage range: 95-140 VAC Input frequency: 45 – 65 Hz Power factor: 1
- Charge Voltage Absorption (V DC): 14,4 / 28,8
- Charge Voltage Float (V DC): 13,8 / 27,6
- Storage Mode (V DC): 13,2 / 26,4
- Charge Current House Battery (A): 80 / 50
- Charge Current Starter Battery (A): 4
- Battery Temperature Sensor: Yes
General Specifications:
- Auxiliary output: n.a
- Programmable Relay: Yes (1x)
- Protection: a - g
- VE.Bus Communication Port: For parallel and three-phase operation, remote monitoring and system integration
- General purpose com.port: n.a
- Remote On-Off: Yes
- Common Characteristics: Operating temp. range: -40 - +65 °C / -40 to 150 °F (fan assisted cooling) Humidity (non-condensing): max 95%
Enclosure Specifications:
- Common Characteristics: Material & Colour: aluminium (blue RAL 5012) Protection category: IP 21
- Battery-Connection: M8 bolts
- 120 V AC-Connection: Screw-terminal 6 AWG (13 mm²)
- Weight: 13 kg 25 lbs
- Dimensions (H x W x D): 520x255x125 mm / 20.5x10.0x5.0 inch
Standards:
- Safety: UL 458, EN-IEC 60335-1, EN-IEC 60335-2-29
- Emission, Immunity: EN-IEC 61000-3-2/3-3/, EN-IEC 61000-6-1/6-2/6-3
Product Manuals
Victron Energy MultiPlus 12V/2000W/80-50 120V VE.Bus (UL) Inverter Charger Product Manuals
MutiPlus Compact 12/24V 2000VA 120V
Datasheet-Multiplus-inverter-charger_2kVA-and-3kVA-120V-US-EN
Energy Storage System
Automatic Generator start-stop
Solar & Wind Priority
VictronConnect configuration guide for VE.Bus products
Product Warranty
Victron Energy Product Warranty
Victron Energy warrants its products to be free from defects in workmanship and materials for a period of 5 years from the date of purchase by the end-user, with a maximum of 66 months from the Victron Energy invoice date. Exceptions on this are: lead-acid batteries; 2 years from date of purchase by the end-user, with a maximum of 30 months from the Victron Energy invoice date, Lithium batteries; 3 years from date of purchase by the end-user. In addition to this, proof of correct battery usage is required when making a battery warranty claim.
For a 10% surcharge on the net price for products that came with a 5-year warranty, an additional 5 years of warranty can be purchased, bringing the total warranty to 10 years. Warranty extensions need to be applied for ultimately one year before expiration of the original term.
During the warranty period, Victron Energy will, at its discretion, repair, replace or credit the defective product free of charge. The warranty does not include performing or reimbursing de‐installation, transportation, and re‐installation. This warranty will be considered void if the unit has suffered any physical damage or alteration, either internally or externally, and does not cover damages arising from improper use like:
• Reverse of battery polarity.
• Inadequate connection.
• Mechanical shock or deformation.
• Contact with liquid or oxidation by condensation.
• Use in an inappropriate environment(dust, corrosive vapor, humidity, high temperature, biological infestation...).
• Breakage or damage due to lightning.
• Connection terminals and screws destroyed or other damages, like overheat, due to insufficient tightening.
• For any electronic breakage except due to lightning (reverse polarity, over‐voltage due to external cause), the state of the internal control diode and/or the input/output X and Y capacitors determine the warranty.
This warranty will not apply where the product has been misused, neglected, improperly installed, or repaired by anyone else than Victron Energy or one of its authorized Repair Centres. In order to qualify for the warranty, the product must not be disassembled or modified.
Repair, replacement or credit are our sole remedies and Victron Energy shall not be liable for damages, whether direct, incidental, special, or consequential, even caused by negligence or fault.
Victron Energy owns all parts removed from repaired products. Victron Energy uses new or reconditioned parts made by various manufacturers when performing warranty repairs or building replacement products. If Victron Energy repairs or replaces a part of a product, its warranty term is not extended.
All remedies and the measure for damages are limited to the above.
Victron Energy shall in no event be liable for consequential, incidental, contingent or special damages, even if having been advised of the probability of such damages. Any and all other warranties expressed or implied arising by law, course of dealing, course of performance, usage of trade or otherwise, including but not limited to implied warranties of merchantability and fitness for a particular purpose, are limited in duration to a period of five (5) years from the date of purchase, with the exception of batteries. For lead acid batteries a two (2) year period applies and for lithium batteries a three (3) year period applies.
